400 Rpm Suspending Rotary Degasser Apparatus Aluminum Refining

Jinan Hydeb Thermal Tech Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 400 Rpm Suspending Rotary Degasser Apparatus Aluminum Refining from wholesalers

    Buy cheap 400 Rpm Suspending Rotary Degasser Apparatus Aluminum Refining from wholesalers
    • Buy cheap 400 Rpm Suspending Rotary Degasser Apparatus Aluminum Refining from wholesalers
    • Buy cheap 400 Rpm Suspending Rotary Degasser Apparatus Aluminum Refining from wholesalers

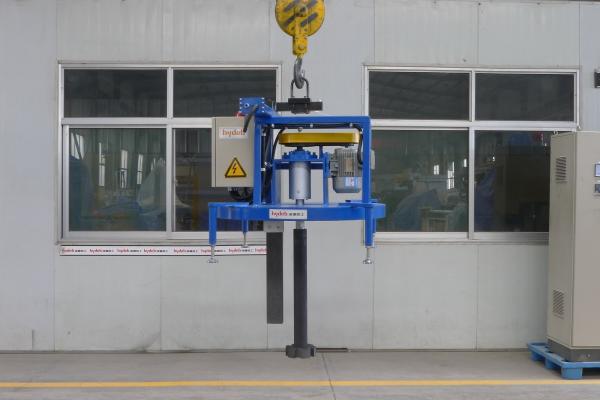

    400 Rpm Suspending Rotary Degasser Apparatus Aluminum Refining

    Ask Lasest Price
    Brand Name : Hydeb
    Model Number : XCP100-1
    Certification : CE,ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
    Price : $ 9900-$20000/set
    Payment Terms : T/T
    Supply Ability : 50 sets per year
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    400 Rpm Suspending Rotary Degasser Apparatus Aluminum Refining

    400 Rpm Suspending Rotary Degasser Apparatus Aluminum Refining 99.996 Percent Aluminum Foundry


    Crane Lifted Suspending Siliver Rotary Degassing Unit For Dealing With Aluminum Liquid


    Suspending Type with Graphite Rotor and Shafts Rotary Degassing and Fluxing Equipment by Crane


    1. Rotary Degasser Apparatus Working Area


    • Aluminium foundries

    • Aluminium holding and transfer vessels (crucibles, furnaces, ladles)


    2. Rotary Degasser Apparatus Merits


    • Continuous operation

    • Accurate flux injection under the metal level

    • Programmable Logic Controller (PLC) monitors and controls operation

    • Variable speed electric motor

    • Auto-timer and flashing light notify the operator when the cycle is done

    • Automatic mode settings provide repeatable results and efficiency

    • Efficiently uses flux, nitrogen or argon

    • Process gas flow meter

    • Self-checking diagnostics

    • Password protected cycle parameters

    • Degassing system can rotate around the support column (optional)

    • Cooling air blower prevents overheating


    3. Rotary Degasser Apparatus Mainly Technical Data


    ItemDataMark
    Refining GasPurity %≥99.996High Purity Nitrogen or Argon
    Moisture ppm≤ 3
    O2 ppm≤ 5
    Pressure MPa0.1-0.6 Adjustable
    Flow L/min15~30 Adjustable
    Refining FluxGranularity mm≤5
    Powder Spraying g/min0~350 Adjustable
    PowerPhrase3
    Voltage V380±10%
    Frequency Hz50
    Total Power kW< 3
    Motor for Rotary Shaft RotatingPower kW1.1For driving graphite rotation shaft to rotate
    Motor for Hanger Arm Lifting up & downPower kW1.1For Hanger Arm Lifting up & down
    Motor for Arm RotationPower kW0.4

    For driving the hanger arm

    rotation

    Motor for Filling Fluxing DevicePower kW0.12For filling refining flux
    Graphite Rotor Speed r/min0-500VVVF adjustable
    Refining Degassing Time min0~99Time Adjustable
    Graphite Shaft SizeDia. Φ mmAccording the design
    Length mmAccording the design
    Graphite Rotor SizeDia. Φ mm

    According the design


    Length mm
    Graphite Baffle SizeLength mm
    Width mm
    Thickness mm
    Number of Graphite Baffle1
    Weight kgAbout 600According to actual production

    4. Rotary Degasser Apparatus Models


    StructureStationary typeMobile TypeSuspending TypeSuspending Type
    TypeXCP230-1XC210-1XCP100-1
    XCP100A

    5. Rotary Degasser Apparatus Reference Pictures



    6. Our Strengths



    7. FRQ


    Q1: I know nothing about this degassing unit, what kind of degassing unit I should choose?
    Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do
    by using this machine, then let us give you perfect solutions and suggestions.


    Q2: When I get this degassing unit, but I don’t know how to use it. What should I do?
    We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
    Telephone/ Skype / Whatsapp / Weichat/ E-mail.


    Q3: If some problems happen to this degassing unit during warranty period, what should I do?
    We will supply free parts during machine warranty period if machine have some problems (except spare parts).
    While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.


    8. Hydeb Company Profile


    Jinan Hydeb Thermal Tech Co., Ltd was established in January 2003, and now has 56 employees.
    ​Last year the sales of 50 million RMB in 2020.

    Hydeb is focus on one industry -- "aluminum casting"


    Hydeb has a complete product line of aluminum casting equipment, all products are independent research

    and development, manufacturing

    -- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid

    hydrogen measurement, until aluminum solution aging treatment equipment
