    U Type 1150mm Silicon Die Casting Spare Parts Carbon Fiber Heating Element 1400C

    Ask Lasest Price
    Brand Name : Hydeb
    Model Number : U1150
    Certification : ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
    Price : $ 50-$2000/Pcs
    Payment Terms : T/T
    Supply Ability : 10000 pcs per year
    Delivery Time : 8 working days
    • Product Details
    • Company Profile

    U Type 1150mm Silicon Die Casting Spare Parts Carbon Fiber Heating Element 1400C

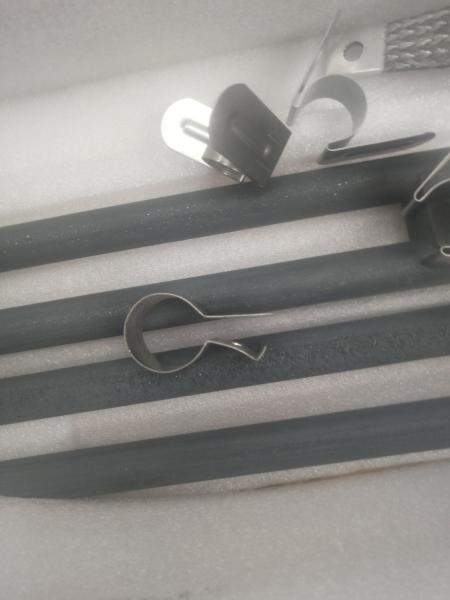

    U Type Black Silicon Carbon Heating Elements For Die Casting Lines


    Silicon Carbon SiC Heating Elements for Heating Molten Aluminum


    1. Sic Heating Elements Function


    SiC heating element is widely used in high temperatue furnaces, It can be used in air, vacuum and other protection gase enviroments


    2. Sic Heating Elements Specifications

    ---High working temperature: 1400C.
    --- Long time last.
    --- Varous type available. Rod, U, M, Single Spiral, Double Spiral
    3. How to Order Mission SiC Heating Element

    --- Choose the shape you need, like Rod, U, W, Single Spiral etc.

    --- Out Diameter (OD)

    --- Heating Zone Lengh (HZ)

    --- Overall Length (OL)

    --- Resistance you need.

    --- Order Sample: Rod type, OD30mm, HZ300mm, OL800mm, Resistance 0.4ohms.


    4. SiC heating Elements Standard Sizes

    SiC elements can be made according to your need!


    Diameter

    Heating zone

    Length

    Cold zone

    Length

    Overall lengthRange of resistance
    14mm100-500mm150-350mm400-1200mm0.7-5.6 ohms
    16mm200-600mm150-350mm500-1600mm0.7-4.4 ohms
    18mm200-800mm150-400mm500-1600mm0.7-5.8 ohms
    20mm200-800mm200-600mm600-2000mm0.6-6.0 ohms
    25mm200-1200mm250-700mm700-2600mm0.4-5.0 ohms
    30mm300-2000mm250-800mm800-3600mm0.4-4.0 ohms
    35mm400-2000mm250-800mm900-3600mm0.5-3.6 ohms
    40mm500-2700mm250-800mm1000-4300mm0.5-3.4 ohms
    45mm500-3000mm250-750mm1000-4500mm0.3-3.0 ohms
    50mm600-2500mm300-750mm1200-4000mm0.3-2.5 ohms
    54mm600-2500mm300-750mm1200-4000mm0.3-3.0 ohms

    5. Company Profile


    Founded in January 2003, the Jinan HYDEB Thermal Tech Co., Ltd. is located in Jinan High-tech Development Zone.
    The Company mainly produces molten aluminum refining and degassing units, molten aluminum transfer ladles and
    holding crucible furnaces, which are sold to well-known corporations in the industry at home and abroad, meeting their
    high requirements for product safety and advancement.
