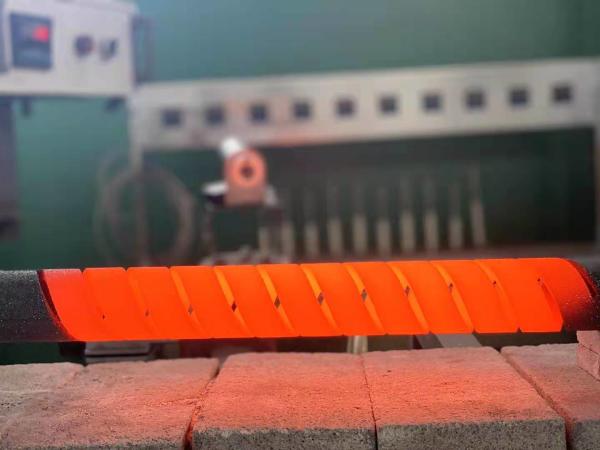

Double Spiral Type Black SIC Silicon Carbon Heating Elements For
Die Casting Lines
Silicon Carbon SiC Heating Elements for Heating Molten Aluminum
1. Company Profile
-- Established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2021
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all
products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating,
aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment
equipment
2. Specifications
---High working temperature: 1400C.
--- Long time last.
--- Varous type available. Rod, U, M, Single Spiral, Double Spiral
3. How to Order Mission SiC Heating Element
--- Choose the shape you need, like Rod, U, W, Single Spiral etc.
--- Out Diameter (OD)
--- Heating Zone Lengh (HZ)
--- Overall Length (OL)
--- Resistance you need.
--- Order Sample: Rod type, OD30mm, HZ300mm, OL800mm, Resistance
0.4ohms.
4. SiC heating elements Standard Sizes
SiC elements can be made according to your need!
| Diameter | Heating zone Length | Cold zone Length | Overall length | Range of resistance |
| 14mm | 100-500mm | 150-350mm | 400-1200mm | 0.7-5.6 ohms |
| 16mm | 200-600mm | 150-350mm | 500-1600mm | 0.7-4.4 ohms |
| 18mm | 200-800mm | 150-400mm | 500-1600mm | 0.7-5.8 ohms |
| 20mm | 200-800mm | 200-600mm | 600-2000mm | 0.6-6.0 ohms |
| 25mm | 200-1200mm | 250-700mm | 700-2600mm | 0.4-5.0 ohms |
| 30mm | 300-2000mm | 250-800mm | 800-3600mm | 0.4-4.0 ohms |
| 35mm | 400-2000mm | 250-800mm | 900-3600mm | 0.5-3.6 ohms |
| 40mm | 500-2700mm | 250-800mm | 1000-4300mm | 0.5-3.4 ohms |
| 45mm | 500-3000mm | 250-750mm | 1000-4500mm | 0.3-3.0 ohms |
| 50mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-2.5 ohms |
| 54mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-3.0 ohms |
5. Application
SiC heating element is widely used in high temperatue furnaces, It
can be used in air, vacuum and other protection gase enviroments

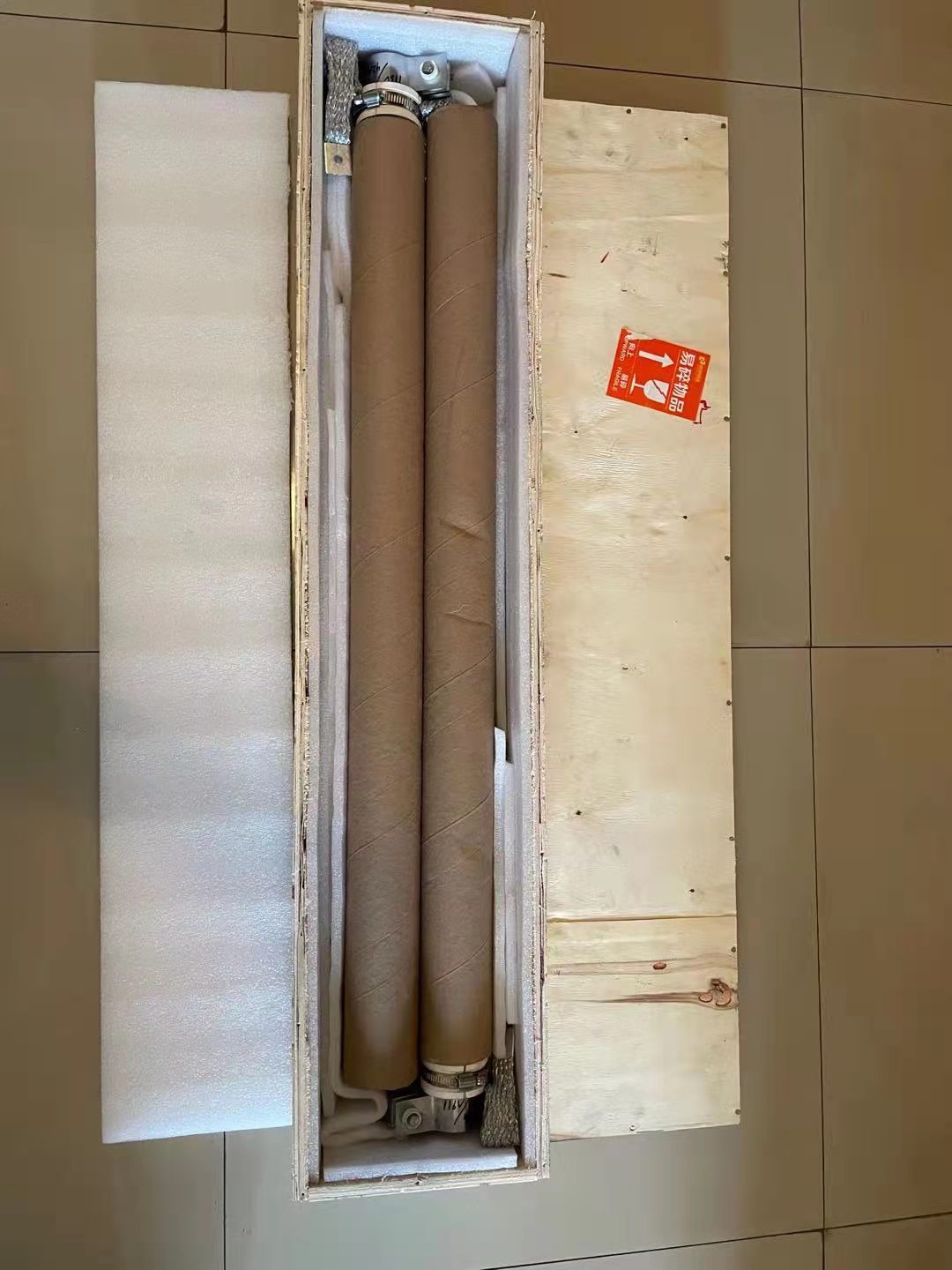

6. Our Package
7. FRQ
Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your
real need. Or just tell us what you want to do
by using this machine, then let us give you perfect solutions and
suggestions.
Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine.
If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this machine during warranty period,
what should I do?
We will supply free parts during machine warranty period if machine
have some problems (except spare parts).
While we also supply free life long after-sales service. So any
doubts, just let us know, we will give you solutions.
